Welcome to SKM Engineering Industries, the leading take up and pay off stand manufacturer in India. We are dedicated to providing high-quality equipment that meets the diverse needs of our clients in the cable and wire manufacturing industry. Our take up and pay off stands are designed with precision and engineered to ensure optimal performance, durability, and efficiency. Whether you need stands for light-duty applications or heavy-duty industrial use, SKM Engineering Industries has the perfect solution for you.

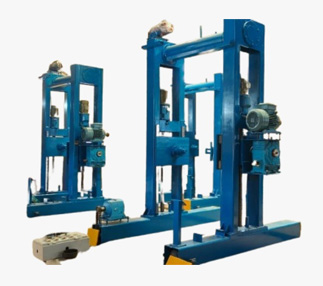

Maximize your cable extrusion efficiency with our top-of-the-line Take Up and Pay Off Stands. Engineered for precision and reliability, these stands are designed to handle a wide range of cable diameters and drum sizes. Built with robust materials and advanced technology, our stands ensure smooth and consistent operation, reducing downtime and boosting productivity.
Our stands accommodate various cable diameters and drum sizes, making them perfect for diverse manufacturing needs.
Designed to operate at optimal speeds, our stands ensure quick and reliable cable handling, minimizing delays and maximizing output.
Built to handle heavy loads with ease, our stands support drum weights up to 20 tons, ensuring consistent performance even under demanding conditions.
| Model | Cable Diameter | Drum Flange | Drum Barrel | Max Drum Weight | Drive | Speed | Motor for Carriage Movement | Lifting Motors (2 each) |
| SMT-1500 | 3-30 mm | 600-1600 mm | 300-600 mm | 3 tons | 3.5 KW | 75 rpm/mt | 0.75 KW | 0.75 KW |
| SMT-2000 | 3-60 mm | 600-2100 mm | 450-800 mm | 5 tons | 5.6 KW | 50 rpm/mt | 0.75 KW | 0.75 KW |
| SMT-2500 | 10-100 mm | 800-2600 mm | 600-1200 mm | 10 tons | 7.6 KW | 40 rpm/mt | 1.5 KW | 1.5 KW |
| SMT-3000 | 20-150 mm | 1000-3100 mm | 850-1200 mm | 15 tons | 11 KW | 30 rpm/mt | 1.5 KW | 2.2 KW |
| SMT-4000 | 20-150 mm | 1200-4100 mm | 1000-2000 mm | 20 tons | 15 KW | 20 rpm/mt | 1.5 KW | 3.7 KW |
Our stands are equipped with powerful drives and efficient motors for smooth carriage movement and lifting. Each model is designed to provide reliable and consistent performance, ensuring your cable extrusion process runs smoothly.
Upgrade your cable extrusion line today with our advanced Take Up and Pay Off Stands. Contact us now to learn more and enhance your production capabilities!
.
| Model of Take up Stand | SMT-1500 | SMT-2000 | SMT-2500 | SMT-3000 | SMT-4000 |
| Dia of cable (mm) | Mar-30 | Mar-60 | 10-100 | 20-150 | 20-150 |
| Drum Flange | 600-1600 | 600-2100 | 800-2600 | 1000-3100 | 1200-4100 |
| Drum Barrel | 300-600 | 450-800 | 600-1200 | 850-1200 | 1000-2000 |
| Drum Overall Width (mm) | 1200 | 1500 | 1950 | 2250 | 2250 |
| Drum Max. Weight (Ton.) | 3 | 5 | 10 | 15 | 20 |
| Drive (kw) | 3.5 | 5.6 | 7.6 | 11 | 15 |
| Speed (rpm/mt) | 75 | 50 | 40 | 30 | 20 |
| Motor for Carriage Movement (kw) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
| Lifting Motor (kw) (2Nos. Each) | 0.75 | 0.75 | 1.5 | 2.2 | 3.7 |
